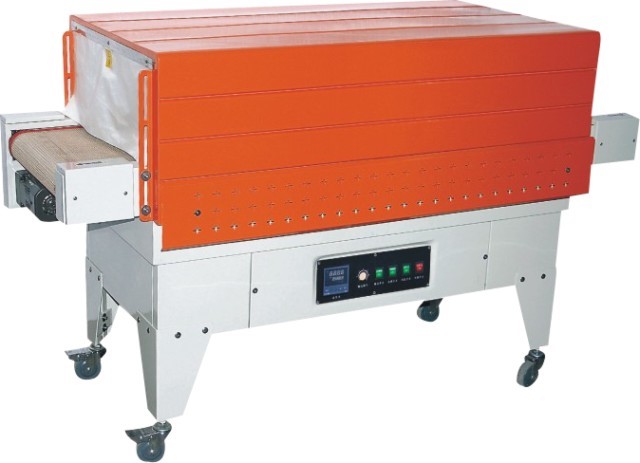

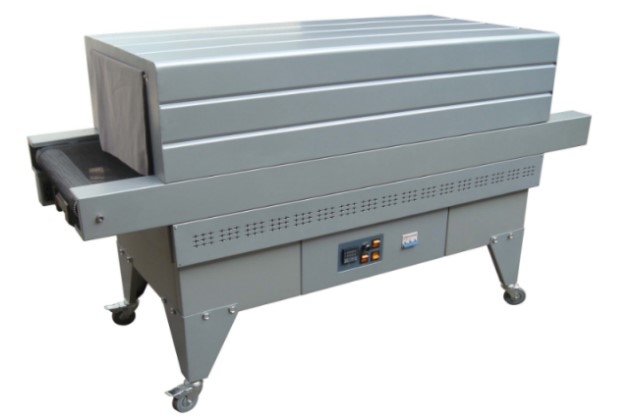

Standard Shrink Tunnel – 3020

Category:

This shrink wrapping machine is widely applied for outer shrink packing of various products, such as foodstuff, beverage, pharmacy, video disc, hardware, cosmetics, book, toy and electronic products etc. To shrink wrapping the combined products in supermarket for sales promotion, such as foodstuff, beverage, cosmetics, presswork and toy etc. To use in place where there is restriction on space, such as supermarket, monopolization shop, office and some laboratory etc.

Shrink Tunnel Model SPS – 3020 adopts hot-wind & down-cyclone structure, intelligence temperature control and AC variable speed regulation. There are two optional conveyors, including Teflon belt type and roller type. Shrink tunnel are applied to heat shrinkable film such as PVC, POF, PP etc. Both the height of tunnel and shutters on two sides are adjustable

Standard Shrink Tunnel – 3020 – Brochure

Tunnel Size (W x H)

300mm x 200mm

Voltage (V/Hz)

220/50

Power Consumption (KW)

4.5

Conveyor Loading (Kg)

10

Heating Furnace (L x W x H)

900mm x 300mm x 50-200mm

External Dimensions (L x W x H)

1200mm x 500mm x 800mm

Speed (m/min.)

0~10

Heating Time (minutes)

10

Cooling Time (minutes)

15

Net Weight (Kg)

70
