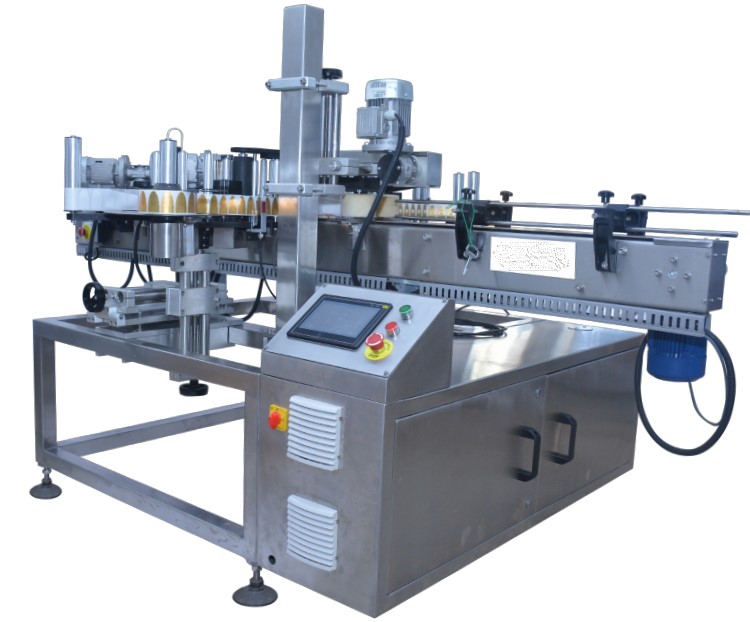

Fully Automatic Labeling Machine

Label Details:

  • Label Material: Paper
  • Gap between two label: 3 mm
  • Label Roll Dia: OD 250mm AND ID 76MM
  • Label Height: Min: 25mm Max:200mm

Machine Speed: 40 To 50BPM-(Speed depends of label width and length)

Machine Accuracy: ±1.5 mm

Machine Dimensions: 2.5 Mx1.5Mx1.5M (LxWxH)

Material of Construction (MOC):

  • Base of the machine: SS structure open frame.
  • Labeler: AL

Controller:

  • Servo Type:Servo

Label Sensor: Leuze make

Speed Variation: Through PLC

Power: 220V/50 Hz, single PHASE

Pneumatic: If require

Built in features

  • Automatic label length Detection.
  • 10 –programs storing capacity.
  • No setting required for product sensor/label sensor while change over
  • Auto label calibration in label scanning mode
  • Label dispensing speed adjustment up to 25 mtr/min
  • Label Pre-ejection adjustable
  • Single Point controlling system-start and stopping machine.

Change over time: 15-20 Mins

BASIC MACHINE PARTS

Conveyor:

  • This is required to move the bottles.
  • Machine direction will be left to right
  • 2500mm length & 114mm slat width

Overhead Unit

  • It holds the bottle properly from top
  • It helps in proper labelling on bottle from both the side

Labelling Head:

  • This is the heart of the machine. Actual labelling head will be designed for maximum label height of 200mm

Orientation

  • It helps to orient the bottle properly before it get hold by overhead unit

Sensor

  • Product sensor required to detect the product and send the signal so label will get applied
  • Label sensor required for the forward movement of the label roll
